Products > IP Systems


Digital Fluorescence Imaging Systems

Microscope Photometry Systems
Cuvette Photometry System

Digital Fluorescence Imaging and Photometry Systems

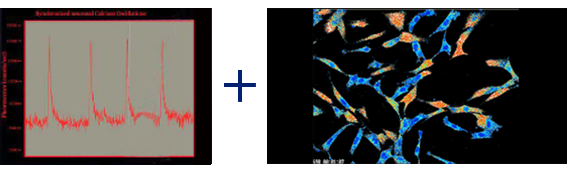

The InCyt-IP line conbines the advantages of both imaging and photometry.



Basic IP   >>



Standard IP   >>



High Speed IP   >>

Speed of
data acquisition
  1.5 ratiometric images per second 15 single-wavelength images per second   4 ratiometric points per second
140 single-wavelength points per second


20 ratiometric points per second
140 single-wavelength points per second



6 ratiometric points per second,
100 single-wavelength points per second



6 ratiometric points per second,
100 single-wavelength points per second

  150 ratiometric measurements per second, 1000 single-wavelength measurements per second
Camera

Basler Scout Monochrome Integrating 12-bit CCD

Image Resolution:640 x 480 pixels



DVC 340M Monochrome Integrating 12-bit CCD with Binning Capabilities

Image Resolution:640 x 480



DVC 340M Monochrome Integrating 12-bit CCD with Binning Capabilities

Image Resolution:640 x 480

Microscope   Accuscope 3032 Inverted
Fluorescence Microscope
  Nikon TS100F Inverted
Fluorescence Microscope
  Nikon TS100F Inverted
Fluorescence Microscope
Filter changer   Tofra Wheel Filter Changer   Sutter Wheel Filter Changer   Excitation wavelength changer Till Polychrome V fast changing monochromator with Xenon arc lamp or Sutter Instruments Lambda DG-5 with digital servo driven filter switching system
Light source   Sutter LB-LS17 175 watt Xenon arc lamp for both UV and visible light excitation   Sutter LB-LS17 175 watt Xenon arc lamp for both UV and visible light excitation
